Are 1000VDC Fuses Available in Different Sizes?

As a dedicated supplier of 1000VDC fuses, I often encounter inquiries about the availability of these fuses in various sizes. In the electrical and solar industries, the demand for reliable over - current protection is crucial, and the size of the fuse plays a significant role in its application and functionality.

The Need for Different Sizes of 1000VDC Fuses

In the realm of direct current (DC) electrical systems, especially those operating at 1000 volts, different applications have diverse requirements for fuses. Solar power systems, for example, are one of the major areas where 1000VDC fuses are extensively used. In a large - scale solar farm, multiple solar panels are connected in series and parallel to generate substantial power. Each string of panels may require a specific fuse size to protect against over - current conditions.

Smaller solar installations, such as residential rooftop solar systems, also rely on 1000VDC fuses. However, the current ratings and physical sizes of the fuses needed in these systems are often different from those in large - scale solar farms. For instance, a small residential system may have lower current - carrying requirements, and thus, a smaller - sized fuse can be sufficient for protection.

Industrial DC power systems, such as those used in telecommunications, data centers, and electric vehicle charging stations, also have their own unique fuse size requirements. Telecommunication facilities may require fuses that can handle relatively low currents but need to be compact to fit into the limited space of equipment racks. On the other hand, electric vehicle charging stations may need larger - sized fuses with higher current ratings to protect the high - power charging circuits.

Available Sizes of 1000VDC Fuses

Yes, 1000VDC fuses are indeed available in different sizes. These sizes can be classified in terms of both physical dimensions and current ratings.

Physical Dimensions

The physical size of a fuse is an important consideration, especially when it comes to installation. Fuses come in various shapes and sizes, such as cartridge fuses, blade fuses, and bolt - on fuses. Cartridge fuses are commonly used in many DC applications. They can range from very small, cylindrical cartridges that are only a few millimeters in diameter and length to larger ones that can be several centimeters long.

Blade fuses, which are often used in automotive and some low - power DC applications, also have different sizes. The width and length of the blade can vary, allowing for different levels of current - carrying capacity and compatibility with different fuse holders. Bolt - on fuses, typically used in high - current applications, can be quite large, with dimensions designed to handle the mechanical stress of high - power connections.

Current Ratings

In addition to physical size, current ratings are a key aspect of fuse sizing. Current ratings for 1000VDC fuses can range from a few amperes to several hundred amperes. For example, in a small solar panel string with a relatively low power output, a fuse with a current rating of 5 - 10 amperes may be sufficient. However, in a large - scale solar array or an industrial DC power system, fuses with current ratings of 50, 100, or even higher amperes may be required.

Compatibility with Fuse Holders and Accessories

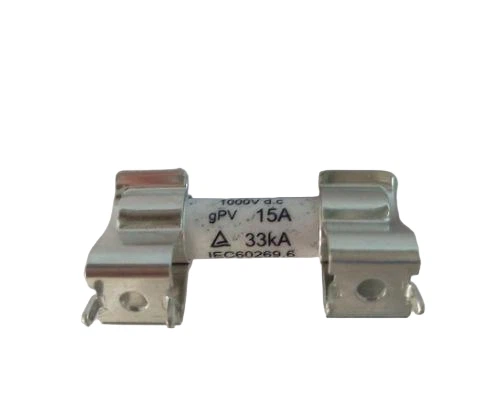

The different sizes of 1000VDC fuses are designed to be compatible with a variety of fuse holders and accessories. For example, Solar Fuse Clip is a crucial accessory in solar power systems. These clips are available in different sizes to match the corresponding fuses. They provide a secure connection between the fuse and the electrical circuit, ensuring reliable operation.

TUV Solar Fuse is another important type of 1000VDC fuse. These fuses are certified by TUV, which is a well - known testing and certification organization. They come in different sizes and current ratings to meet the specific requirements of solar power systems. The TUV certification ensures that the fuses meet high - quality and safety standards.

PV Fuse Holder is also available in various sizes to accommodate different fuses. A proper fuse holder is essential for the correct installation and operation of the fuse. It provides mechanical support and electrical insulation, protecting the fuse from damage and ensuring that it functions as intended.

Choosing the Right Size of 1000VDC Fuse

Selecting the right size of 1000VDC fuse is crucial for the safety and proper operation of the electrical system. When choosing a fuse, several factors need to be considered:

Current Rating

The current rating of the fuse should be selected based on the normal operating current of the circuit. It should be high enough to allow the normal current to flow without blowing the fuse but low enough to protect the circuit in case of an over - current condition. For example, if the normal operating current of a solar panel string is 8 amperes, a fuse with a current rating of 10 - 15 amperes may be appropriate.

Voltage Rating

The voltage rating of the fuse must be equal to or higher than the system voltage. In the case of 1000VDC systems, the fuse should have a voltage rating of at least 1000 volts to ensure proper protection.

Physical Size

The physical size of the fuse should be compatible with the available space in the electrical system and the corresponding fuse holder. If the fuse is too large, it may not fit into the holder, and if it is too small, it may not provide a secure connection.

Conclusion

In conclusion, 1000VDC fuses are available in a wide range of sizes, both in terms of physical dimensions and current ratings. These different sizes cater to the diverse needs of various DC applications, including solar power systems, industrial DC power systems, and more. As a supplier of 1000VDC fuses, I understand the importance of providing customers with the right fuse size for their specific requirements.

If you are in need of 1000VDC fuses, whether for a small - scale residential project or a large - scale industrial application, I invite you to contact me for more information and to discuss your specific needs. Our team of experts can assist you in selecting the most suitable fuse size and type for your electrical system, ensuring reliable over - current protection and the safe operation of your equipment.
